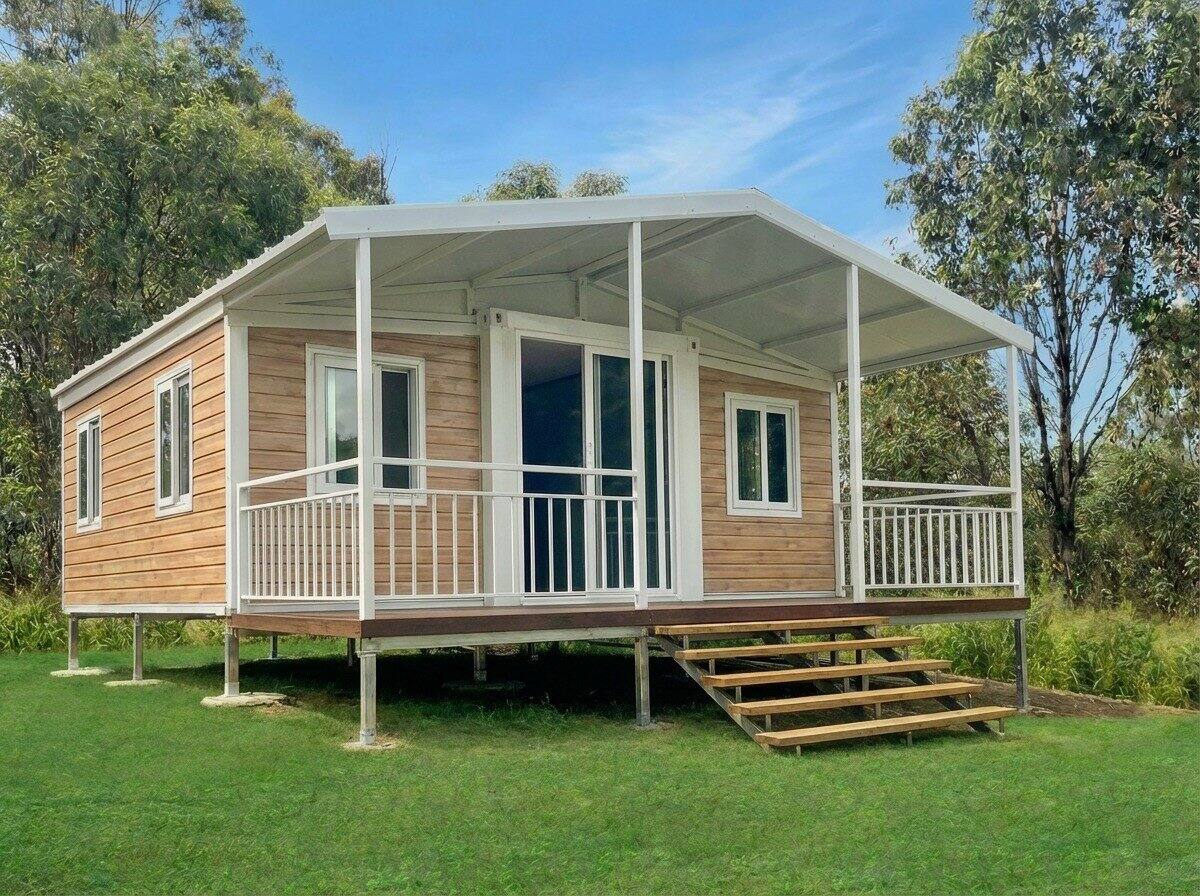

Ivy exterior

Ivy

1–3 bed expander home. 36–39m² of living from a 20ft footprint — pre-built, pre-plumbed, delivered ready to connect.

Starting from
$35,900
1–3
Bedrooms
1
Bathroom
1
Kitchen
36–39m²
Floor area
Expander · 20ft

A compact footprint that opens up into a home.

Arrives as a 20ft unit and expands on-site into 36–39m² of living space with a full kitchen, bathroom, and flexible bedroom layout.

Choose your layout

Configure it your way — 1 to 3 bedrooms.

The Ivy's expanding design supports three bedroom configurations. Pick a layout to see what's included.

1bedroom
From
$35,900
1 Bedroom Layout

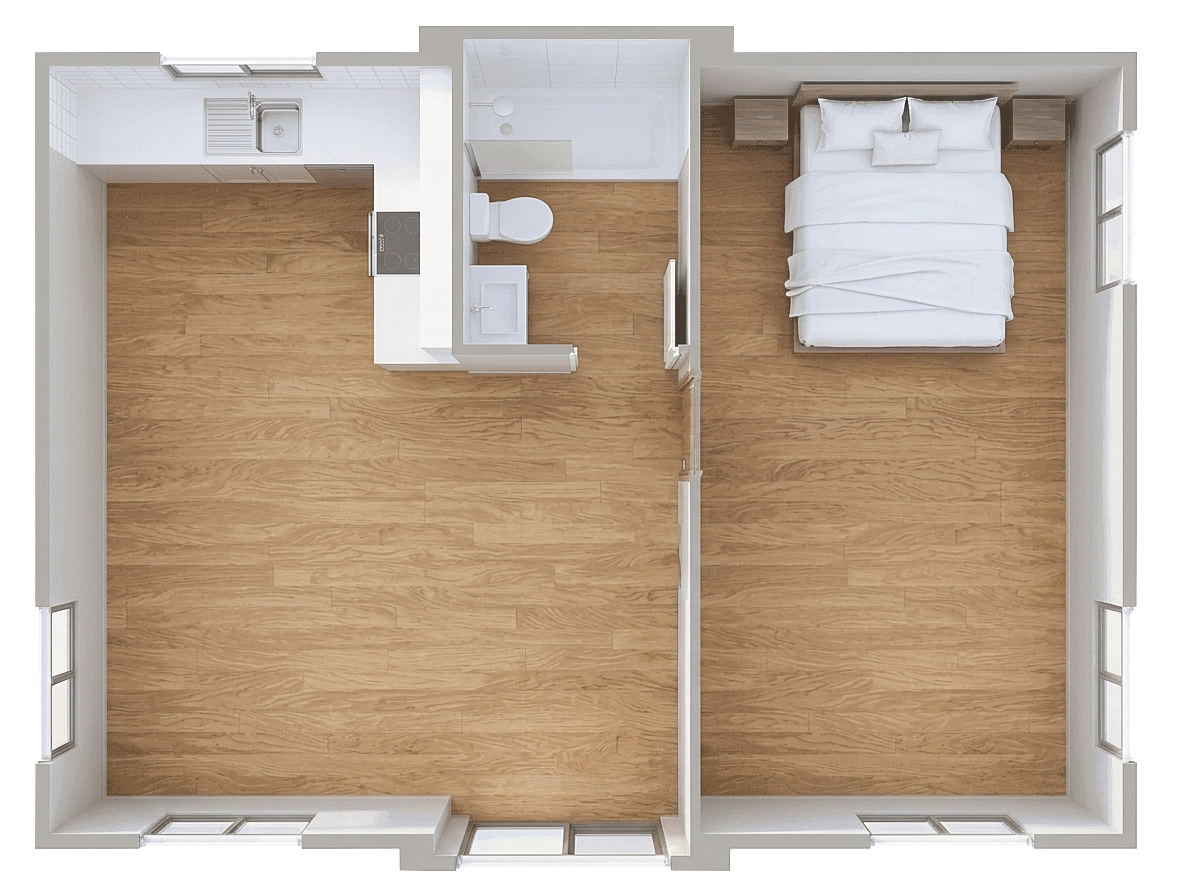

1 bedroom floor plan
Floor plan

Open-plan studio with master suite

    36–39m²
    Floor area
    2
    Sleeps up to
    1
    Bathroom
    At a glance

    Everything you need, built in.

    • Pitched gable roof included as standard
    • Premium steel frame construction
    • Insulated sandwich panel wall system
    • Weatherproof composite exterior cladding
    • Optional bamboo fibreboard interior lining
    • Double-glazed aluminium windows
    • Pre-plumbed & pre-wired
    • WaterMark certified fixtures
    • AS/NZS 3000/3001 compliant

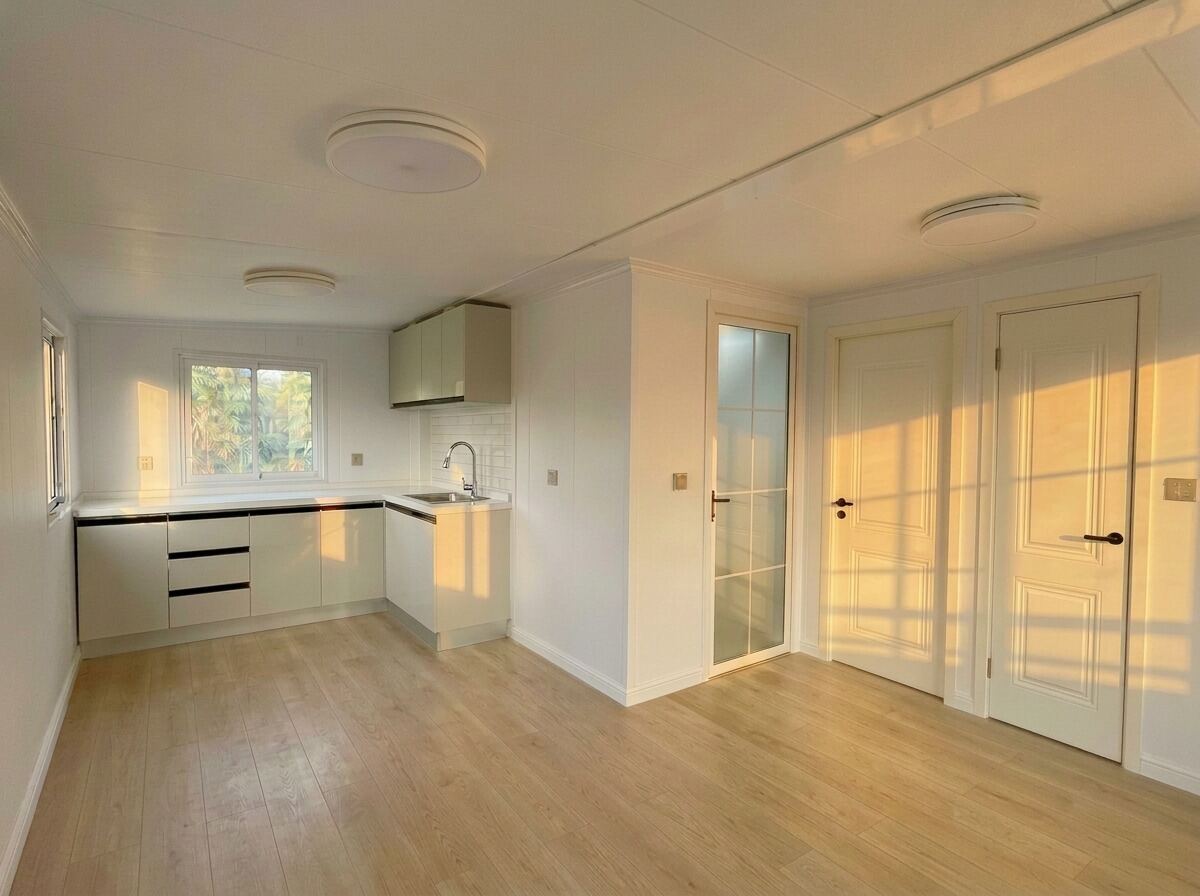

    Kitchen
    01
    Kitchen

    L-shaped kitchen with quartz benchtop.

    Dedicated zones for fridge, dishwasher, and prep. Double-bowl sink, flick-mixer tapware, and cabinetry supplied ready to install.

    • L-shaped layout maximising bench space with dedicated fridge and dishwasher areas
    • White silica-free quartz benchtop with rear mini splash riser
    • Stainless steel double-bowl sink with modern flick-mixer tapware
    • Floor-mounted cabinetry with cupboards and drawers
    • Wall-mounted upper cabinetry provided ready for installation
    • Matching kickplate and sleek door handles supplied
    • PVC plumbing with dedicated dishwasher inlet

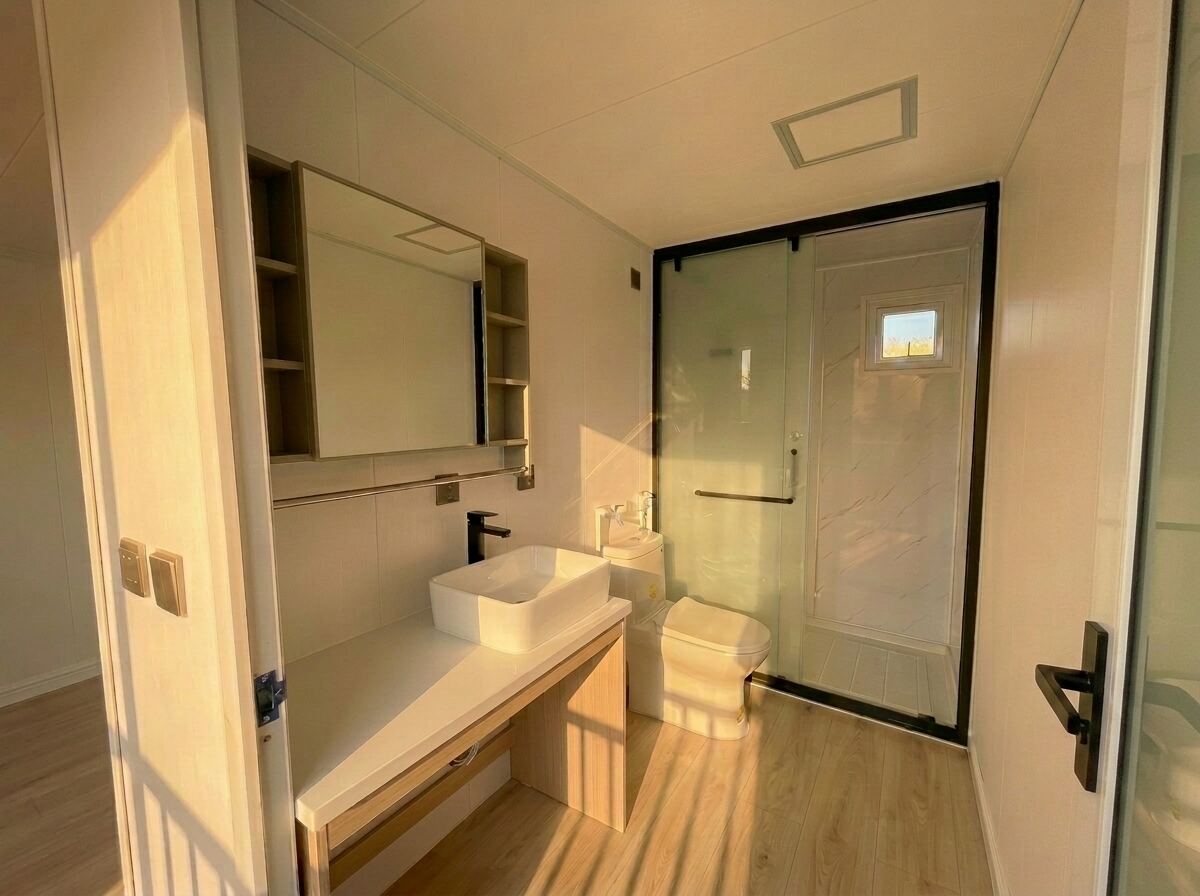

    Bathroom
    02
    Bathroom

    Full bathroom, WaterMark certified.

    Oversized shower with sliding glass screen, chrome tapware, mirrored vanity, and an exhaust fan wired to the main light switch.

    • Modern white ceramic toilet with soft-close seat

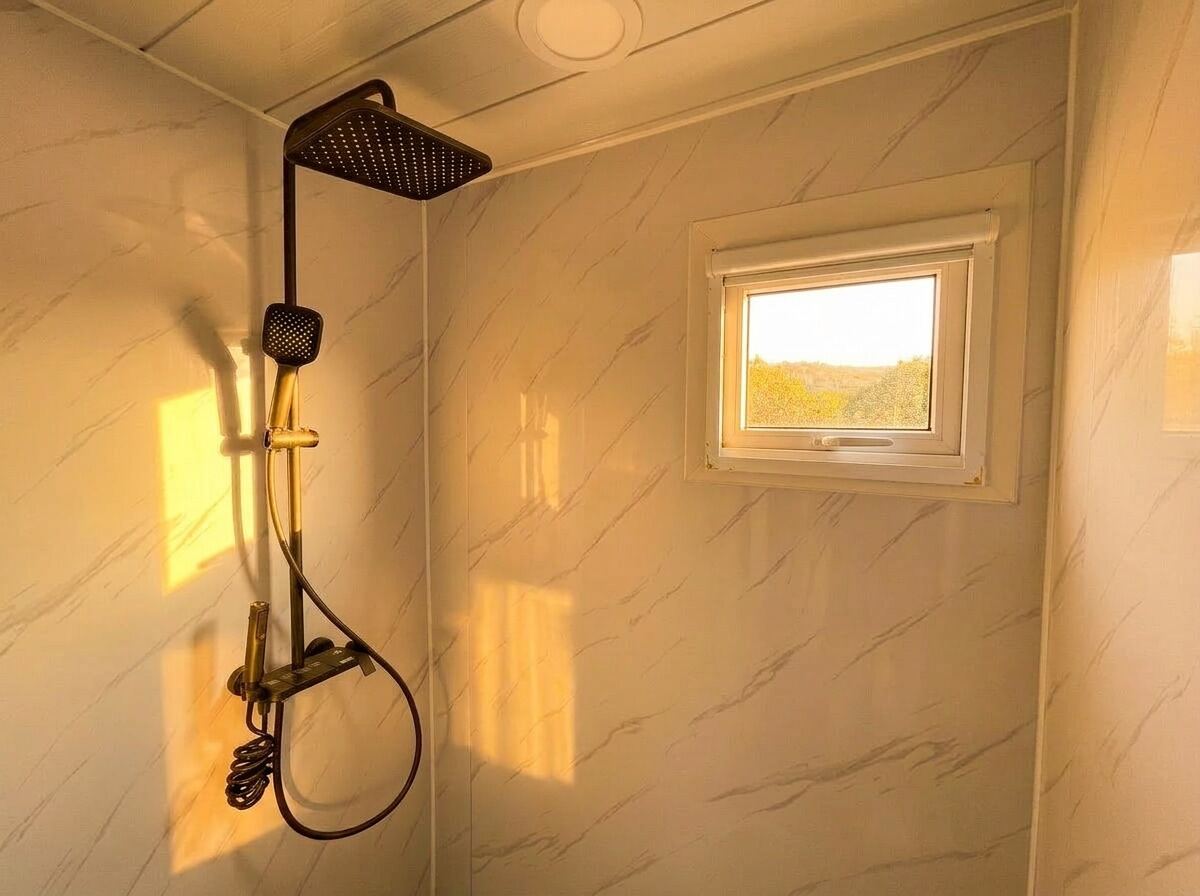

    • Premium oversized shower with sliding glass screen, chrome mixer, rainfall showerhead and hand-held spray

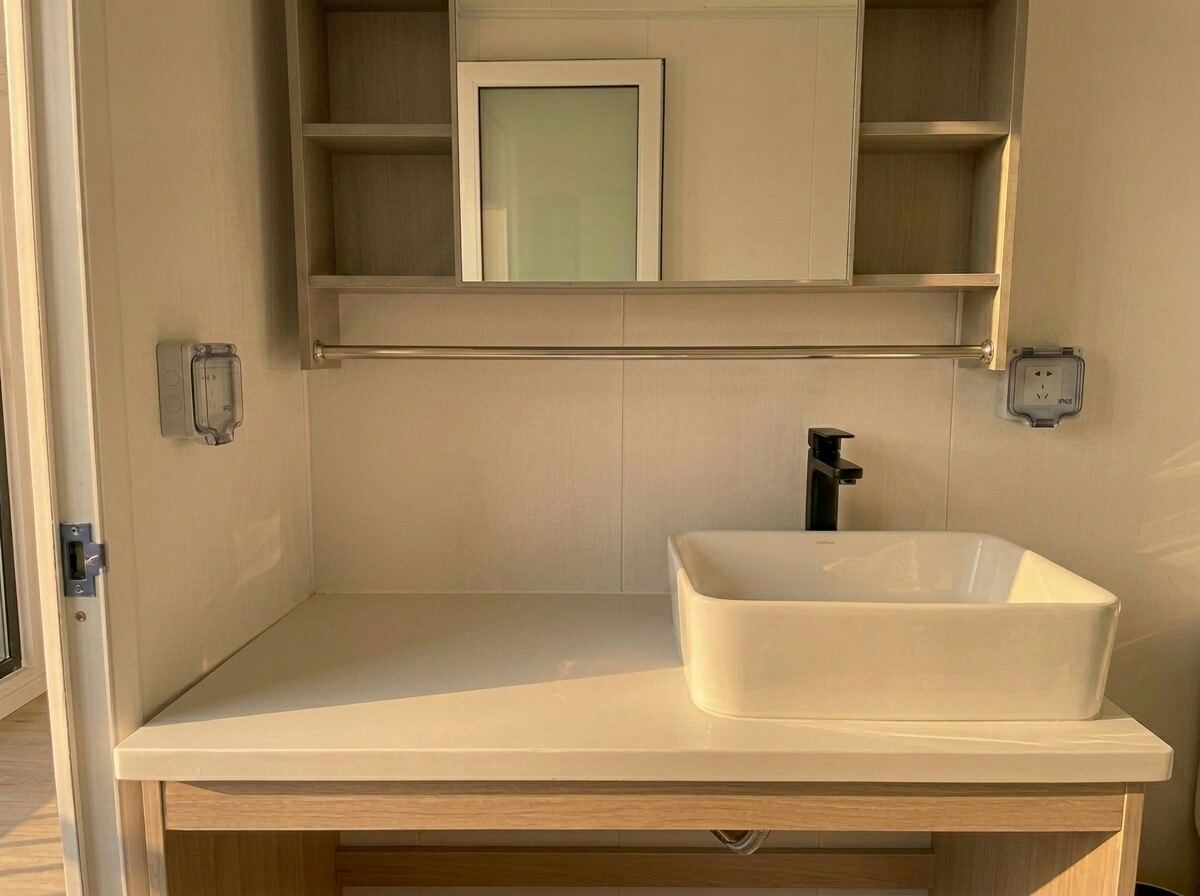

    • Sleek vanity unit pre-fitted with chrome mixer tapware and pop-up waste
    • Overhead mirrored cabinet for additional storage
    • Exhaust fan pre-installed and wired to main light switch
    • All fixtures WaterMark certified

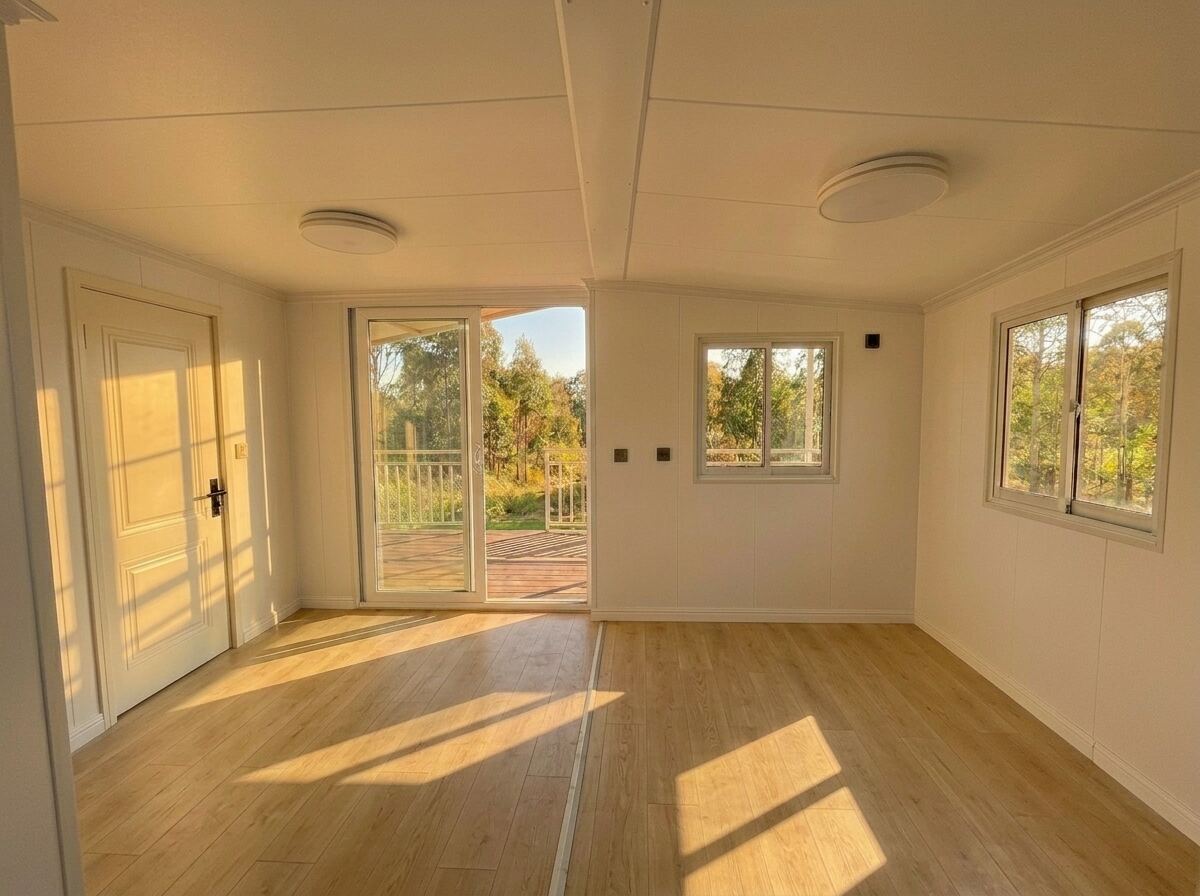

    Open-plan living
    03
    Living

    Open-plan living, built for everyday life.

    A bright, insulated open-plan zone connecting the kitchen, dining, and lounge. Vinyl flooring throughout, double-glazed corner windows, and pre-wiring for aircon and HW.

    • Open-plan layout with corner glazing and a sliding glass entry door
    • Engineered timber-look flooring — moisture-resistant and easy to clean
    • Insulated sandwich panel system for year-round comfort
    • Energy-efficient LED ceiling lights pre-installed in every zone
    • Pre-wired for split-system aircon and electric hot water
    • Double-glazed aluminium windows with flyscreens to all operable openings
    04 · Finishes

    Pick your finishes.

    Select your cladding, flooring, cabinetry, benchtops, and bathroom walls. We'll include your selections with your quote and confirm availability.

    Your selections
    Cladding
    Trims
    Flooring
    Cabinetry
    Benchtops
    Bathroom Walls
    05 · Specifications

    Specifications and materials.

    Everything you need to check fit, transport, and site requirements.

    Dimensions & footprint

    External
    L5900 × W6650 × H2560 mm
    Internal
    L5740 × W6490 × H2400 mm
    Transport (folded)
    L5900 × W2200 × H2480 mm
    Expanded area
    36 m²
    Weight
    3,800 kg
    Bedrooms
    1–3
    Bathrooms
    1

    Frame & Structure

    Beams & columns
    Heavy-duty galvanised structural steel frame — corrosion-resistant and load-rated for transport & placement
    Purlins & keel
    Reinforced galvanised steel purlins and floor chassis
    Floor
    PVC vinyl or SPC hybrid flooring over a high-density fibre-cement subfloor — moisture-resistant and acoustically dampened
    Walls
    Insulated sandwich panel wall system — bamboo fibreboard interior lining available as an upgrade

    Insulation, Doors & Glazing

    Insulation
    Insulated sandwich panel system delivers integrated year-round thermal performance
    Entrance door
    Thermally broken aluminium sliding door / swing door — toughened double-glazing with a UV-resistant tinted coating
    Windows
    Thermally broken aluminium awning windows with toughened double-glazing and a UV-resistant tinted coating
    — Electrical —
    Lighting
    Surface mounted or recessed downlights throughout
    Wiring
    Certified copper cabling sized for primary feed, a dedicated air-conditioning circuit, and general power circuits
    Main switch
    Heavy-duty main isolator with dedicated lock-out
    Circuit protection
    Dedicated RCD/MCB protection across every circuit
    Sockets
    Double-pole powerpoints with integrated USB-A and USB-C charging
    — Plumbing —
    Hot & cold water
    Pre-plumbed to kitchen and bathroom, terminating in threaded brass inlets
    Grey water
    50 mm PVC line from kitchenette and bathroom to a single outlet point
    Toilet waste
    100 mm PVC line exiting through the wall with a P-trap configuration
    06 · Downloads

    Brochure & floor plans.

    Dimensions, layout options, and technical drawings — everything you need for siting and applications.
