3kVA · 5kWh · 3kW Off-Grid Solar Kit

The starter kit. Sized for a single-bedroom studio or weekender — Victron EasySolar II 48/3000 GX with built-in 250/70 SmartSolar MPPT, six 500W Trina panels and one 5kWh Vaulta lithium module. Expandable as your needs grow.

From $9,182
3 kVA
Inverter / charger
5 kWh
Lithium battery
3 kW
Solar array
48 V
DC bus
Get a free quote Talk to a specialist
Full specifications

Every component, in detail.

Inverter / charger

Model
Victron EasySolar II 48/3000 GX
Continuous output
2,400 W (nominal)
Peak output
5,500 W
30-minute rating
3,120 W
Built-in MPPT
Victron SmartSolar 250/70
Display
Integrated Cerbo GX touchscreen
Connectivity
Bluetooth dashboard, VRM cloud (with internet)
Warranty
5 years standard (extendable)

Battery storage

Total capacity
5 kWh usable
Modules
1 × 5kWh Vaulta lithium module
Chemistry
Lithium iron phosphate (LiFePO₄)
Expandable
Stacks to 15 kWh (3 × modules)
Standards
AS/NZS 5139 battery installation

Solar array

Total array
3.0 kW
Panels
6 × 500W Trina (CEC-approved)
Module dimensions
2,176 × 1,098 × 35 mm
Module VOC
51.7 V dc
String config
2 × 3 (strings × panels)
String VOC
155.1 V dc
Max expansion
5,320 W (1.33 × MPPT max)
Racking
Clenergy metal/tin roof system, 4.6 m rails
DC isolator
32 A / 4-pole rotary
Solar cable
4 mm² twin, MC4 connectors
Module warranty
12-year product, 25-year performance
Racking warranty
25 years (Clenergy)

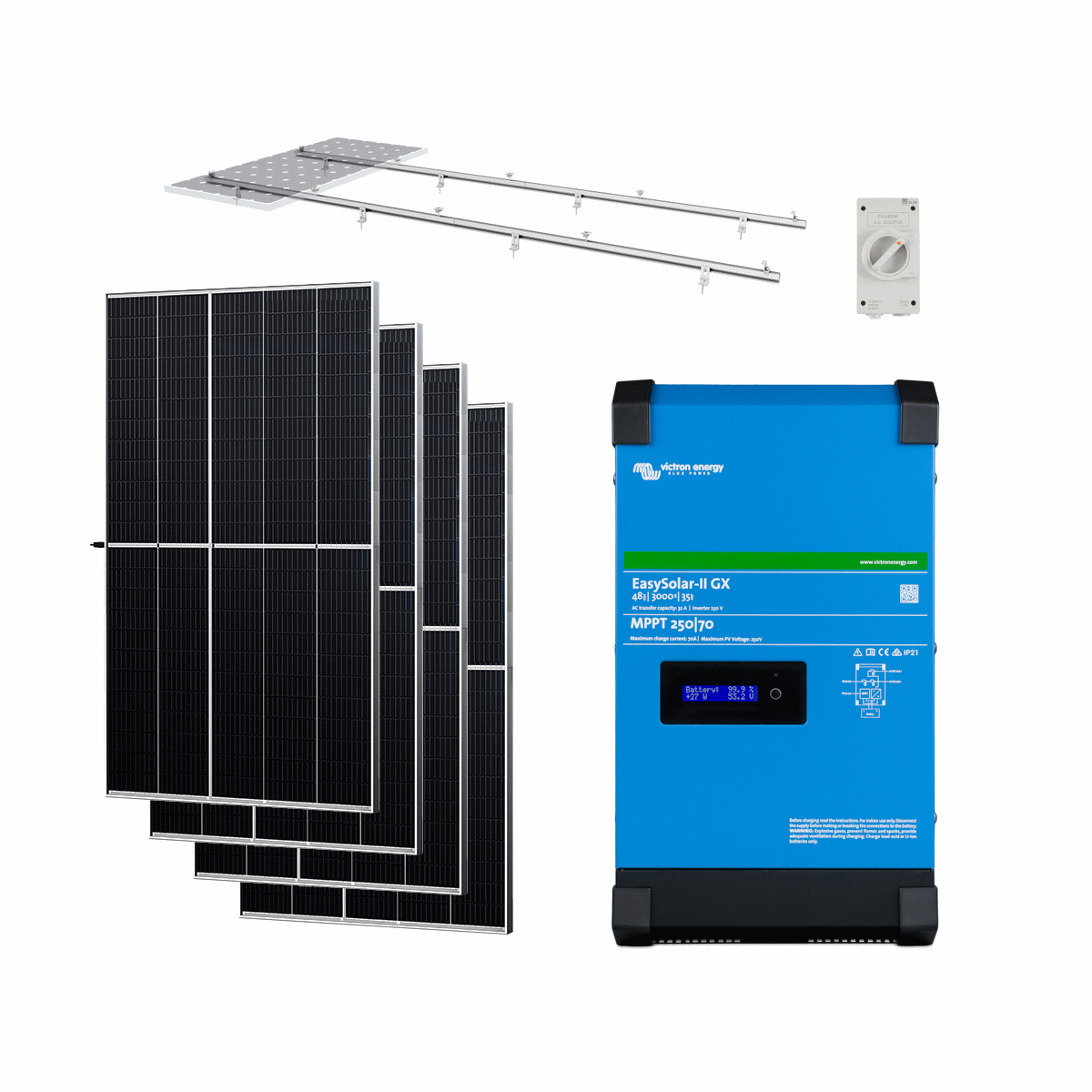

What's included

Everything you need, in one shipment.

Each kit ships as a complete package — inverter, batteries, panels, racking and balance-of-system parts. Designed for straightforward installation by a CEC-accredited solar electrician.

  • Victron EasySolar II 48/3000 GX inverter-charger
  • 1 × 5kWh Vaulta lithium battery module
  • 6 × 500W Trina Solar panels (CEC-approved)
  • Clenergy roof racking, brackets, earth clips & lugs
  • 32 A / 4-pole DC isolator
  • MC4 connectors, 4 mm² PV cable, conduit & saddles
  • Label kit & installation manual
Standards & install

Built to Australian standards.

System wiring complies with the relevant AS/NZS standards listed below. Your installer's electrical certificate covers the final installation.

  • AS/NZS 3000 (or 3001 transportable) — Electrical installations
  • AS/NZS 4509 — Stand-alone power systems
  • AS/NZS 5139 — Battery installations
  • AS/NZS 5033 — Installation of photovoltaic arrays
LV (low-voltage) work — including any solar array above 120 V dc — must be carried out by a licensed electrician. Compliance with the standards above is the installer's responsibility; check the rules in your state.
