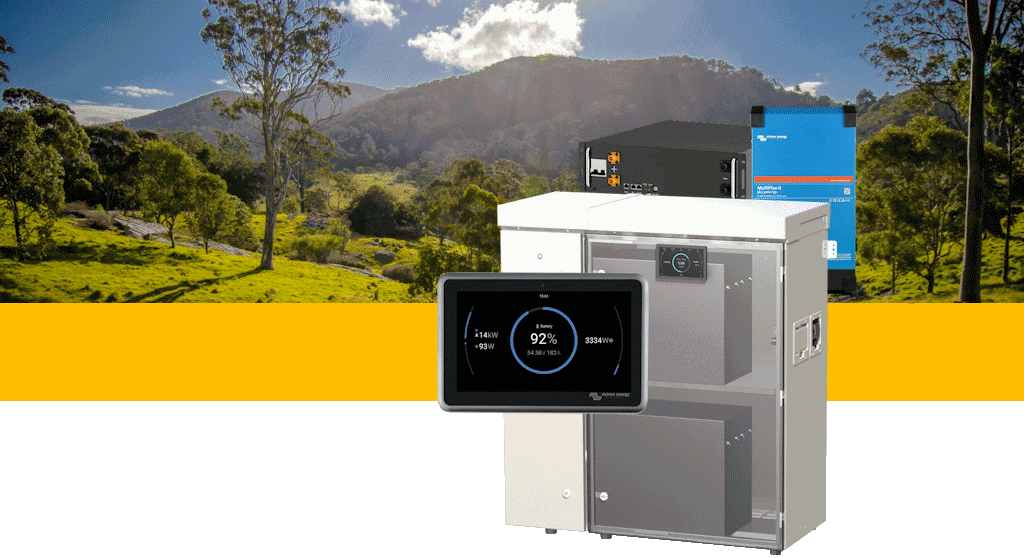

10kVA · 20kWh · 10kW Off-Grid Solar Kit

The flagship off-grid kit. Sized for a medium-to-large residence drawing 15–28 kWh per day. Twin Victron MultiPlus-II 48/5000 inverter-chargers in parallel, twenty 500W Trina panels and four stacked 5kWh lithium modules for true full-time, full-house power.

From $38,158
10 kVA
Inverter / charger
20 kWh
Lithium battery
10 kW
Solar array
48 V
DC bus
Get a free quote Talk to a specialist

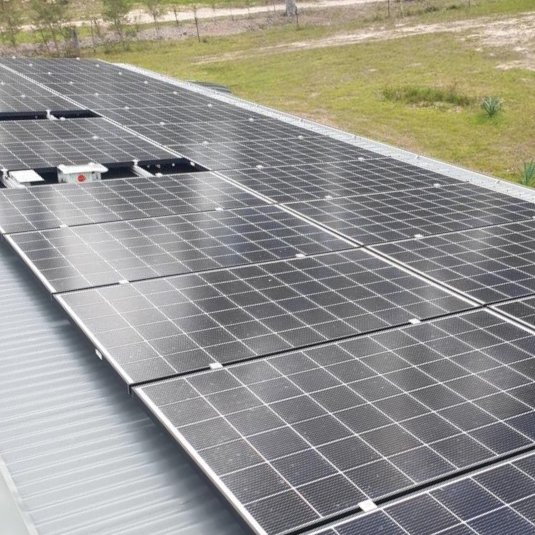

10 kW solar array installed on a metal roof
Full specifications

Every component, in detail.

Inverter / charger

Configuration
2 × Victron MultiPlus-II 48/5000 (parallel)
Continuous output
10,000 VA / ~8,000 W
Peak output
18,000 W (combined)
Generator input
Yes (AC-in, hot-swap to backup)
MPPT
Victron SmartSolar 250/45
PV inverter
SMA Sunny Boy 6 kW
Controller
Victron Cerbo GX + Touch 70 screen
Connectivity
Bluetooth, VRM cloud (with internet)
Warranty
5 years standard (extendable)

Battery storage

Total capacity
20 kWh usable
Modules
4 × 5kWh Simpo lithium modules
Chemistry
Lithium iron phosphate (LiFePO₄)
Reserve
≈ 2–3 days low-cloud reserve at 15 kWh/day
Enclosure
K40.11070.45 + K40.11030.45 outdoor metal cabinets
Standards
AS/NZS 5139 battery installation

Solar array

Total array
10.0 kW
Panels
20 × 500W Trina (CEC-approved)
Module dimensions
2,176 × 1,098 × 35 mm
Module VOC
51.7 V dc
String config
2 × 10 (strings × panels)
Racking
Metal/tin roof rails, brackets, earth clips
DC isolator
32 A / 4-pole rotary
Solar cable
4 mm² twin, MC4 connectors
Module warranty
10-year product, 25-year performance
Sized for
Medium–large residence, 15–28 kWh/day
Lead time
Approx. 5–10 business days, supply only

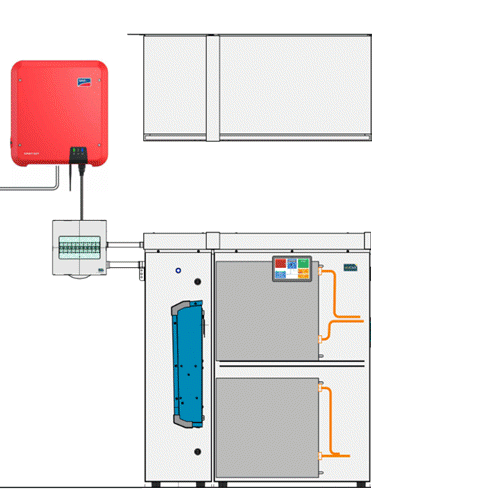

Component layout — inverter, controllers and battery cabinet
How it's wired

One integrated system — programmed before it ships.

Two MultiPlus-II inverters run in parallel for the 10 kVA continuous output, with the SMA Sunny Boy 6 kW PV inverter feeding solar straight to the AC bus when the sun is up. The Victron 250/45 SmartSolar MPPT handles DC-coupled charging into the battery bank.

The Cerbo GX controller manages it all — generator hand-off, battery state of charge, load shedding — and pushes live telemetry to your phone via the Victron VRM dashboard whenever the system is online.

What's included

Everything you need, in one shipment.

Each kit ships as a complete package — inverters, batteries, panels, racking and balance-of-system parts, all pre-integrated and programmed. Designed for straightforward installation by a CEC-accredited solar electrician.

  • K40.11070.45 & K40.11030.45 outdoor metal enclosures
  • 2 × Victron MultiPlus-II 48/5000 inverter-chargers, programmed
  • 4 × 5kWh Simpo lithium battery modules (20 kWh total)
  • SMA Sunny Boy 6 kW PV inverter
  • Victron SmartSolar MPPT 250/45
  • Victron Cerbo GX + Touch 70 display, all data cables
  • 20 × 500W Trina solar panels (CEC-approved)
  • Metal-roof rails, brackets, earth clips, lugs & fittings
  • 32 A / 4-pole DC isolator, fuses, off-grid signage & manual
Standards & install

Built to Australian standards.

System wiring complies with the relevant AS/NZS standards listed below. Your installer's electrical certificate covers the final installation.

  • AS/NZS 3000 (or 3001 transportable) — Electrical installations
  • AS/NZS 4509 — Stand-alone power systems
  • AS/NZS 5139 — Battery installations
  • AS/NZS 5033 — Installation of photovoltaic arrays
LV (low-voltage) work — including any solar array above 120 V dc — must be carried out by a licensed electrician. Compliance with the standards above is the installer's responsibility; check the rules in your state.
